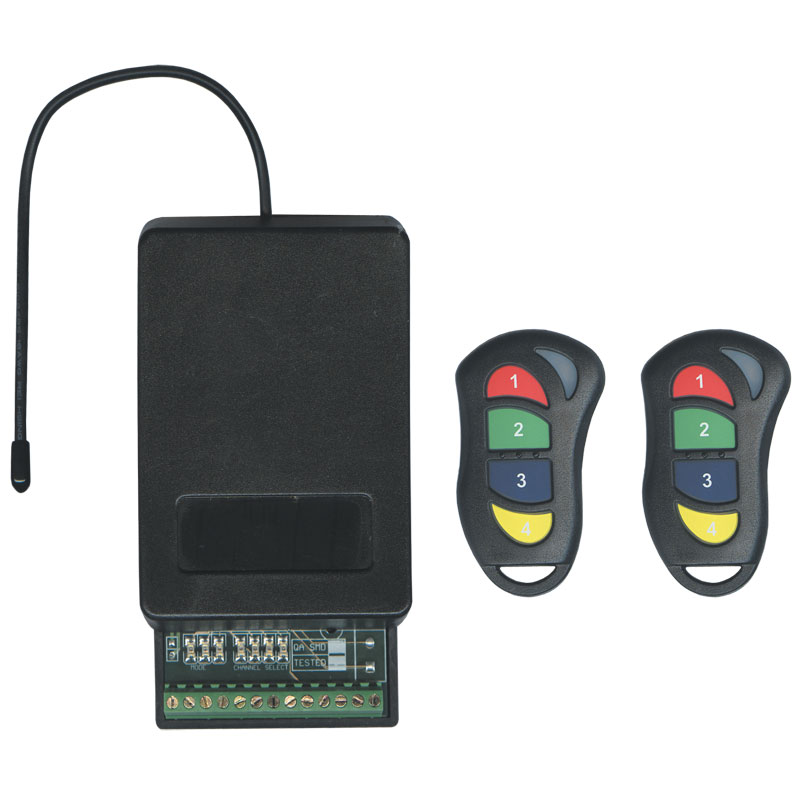

The RXPROR4 is an advanced multi-purpose 4-channel narrow-band UHF receiver / transmitter set with fully programmable relay outputs (1 amp rating). It is supplied as standard with 2 x code hopping, 4 button remote controls with long life lithium batteries. It can be used to add Watchguard wireless alarm accessories to virtually any alarm panel or device.

Up to 200m radio frequency range (line of sight)

All outputs are individually programmable to suit almost any application (momentary, latched, timed or pulsed)

Up to 5 high security code hopping remotes (anti-scan, anti-code grabbing) can be used

Power supply requirement: 12VDC @ 500mA

Compatible with Watchguard wireless alarm detectors

Up to 4 wireless detectors can be used

Supports detector low battery, supervision & tamper signal outputs

Step by step programming via remote control & indication via feature and channel LEDs
