The MDVR-TAXIv2 represents the next generation of in-car GPS video recording systems. It provides an ideal video surveillance solution for in-car use, when you're wanting to record the driver's general road view. This system utilises an in-built video camera with audio recording, providing you with accurate video and audio evidence in the event of an accident or traffic incident.

The unit includes both compact mounting brackets, and a windshield cradle to allow you to mount the unit to the windshield of the vehicle or have it sit out from the windshield, similar to a GPS navigation device. Both mounting methods have been designed to keep the unit out of the driver’s field of view. The built-in GPS module provides not only the location of the vehicle, but also the time of the event and the speed of the vehicle.

The internal CMOS camera capture clear images when the car is driving or stationary (when power is supplied). To view the footage, simply remove the SD memory card from the unit and connect to your Windows PC for viewing using the supplied USB SD card reader.

MAIN FEATURES:

Constant Recording Function: The product constantly stores front view videos, voice, GPS location, and time information on the SD card. When the amount of recorded data exceeds the capacity of the SD memory, the oldest files get overwritten.

Event Recording Function: If the impulse sensed by the G-sensor exceeds a specific limit, or the user presses the emergency recording button, the video file containing 15 seconds of data prior to the event and 15 seconds into the event is automatically stored and transferred to the EVENT MOVIE folder on the SD card.

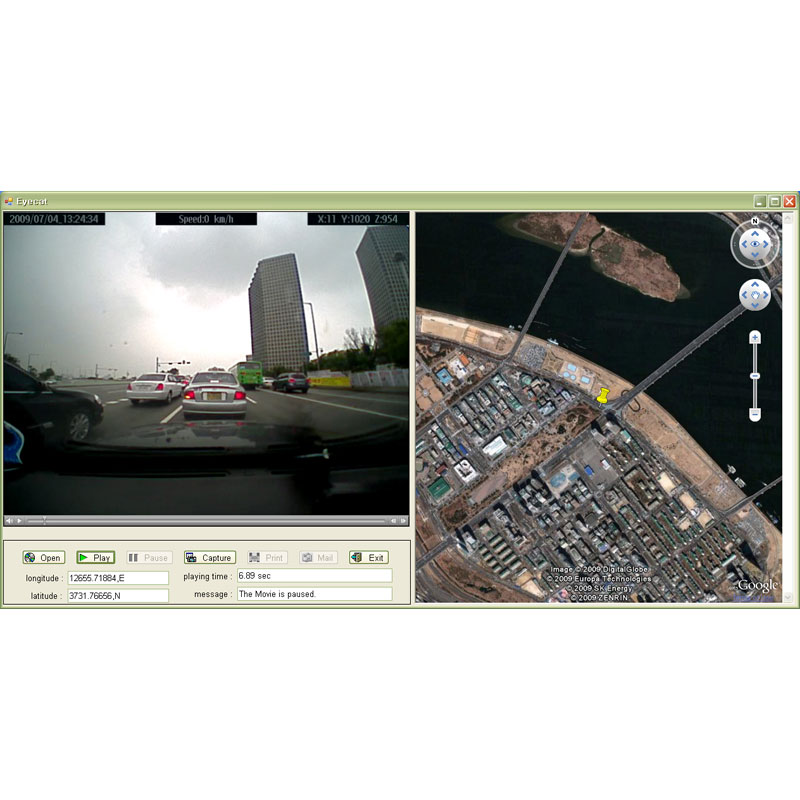

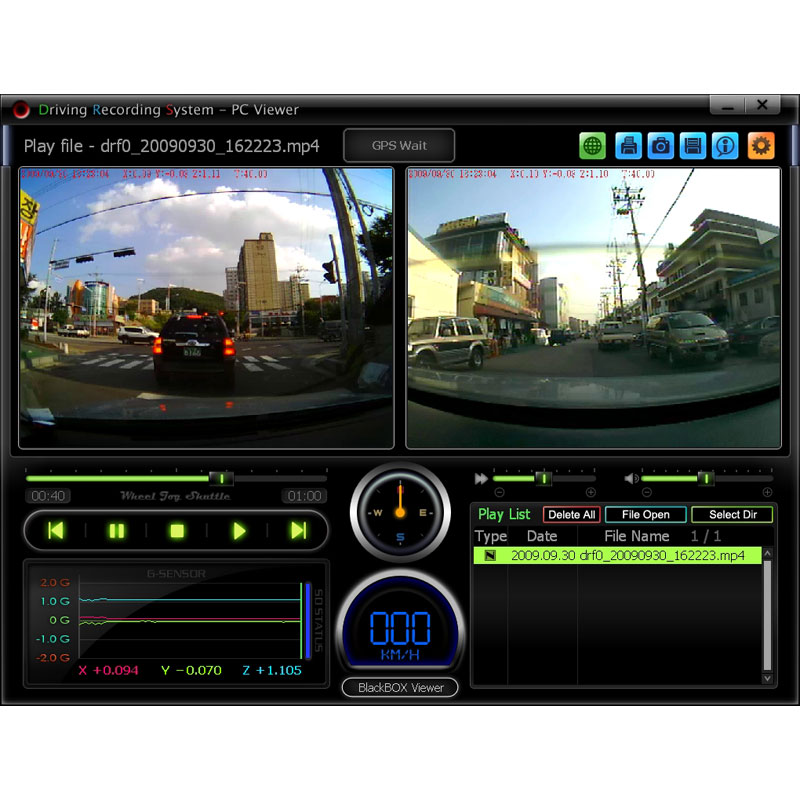

Video and Voice Data Playing & Analysing Function: The user can play recorded video and information, using the software provided with the product, and easily analyse velocity, coordinates, time and GPS location. Recoded video files can be played at a maximum resolution of 640x 480 @ 24 FPS.

PACKAGE INCLUDES:

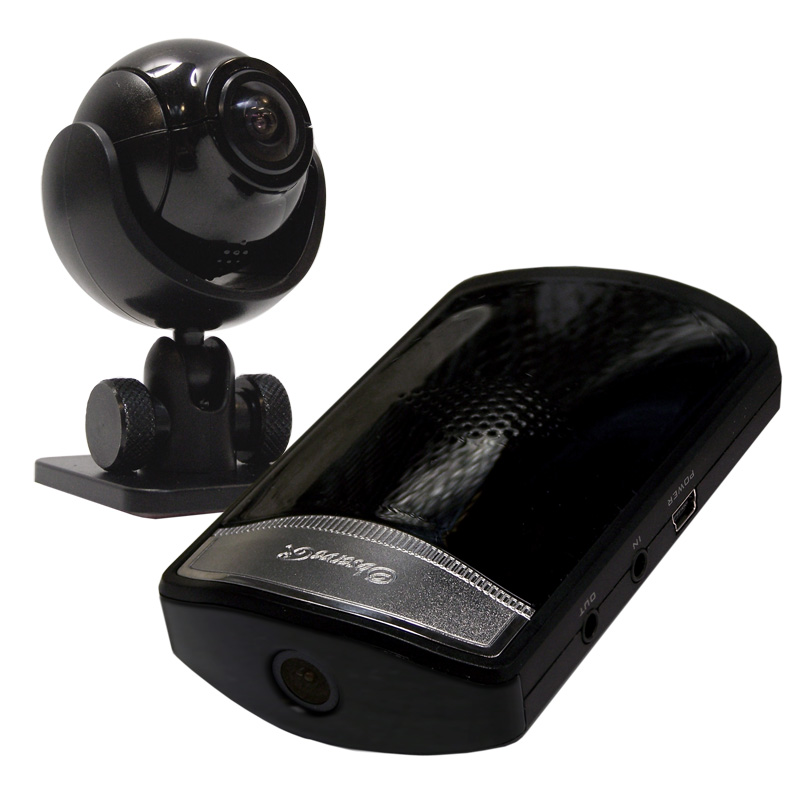

1 x Main Unit with Built-In Camera
1 x Additional surveillance camera
1 x Windscreen cradle bracket
1 x Power Cable
1 x 4GB SD Card
1 x USB SD Card Reader
1 x Windshield mounting brackets with double-sided tape
1 x User Manual

Audio	Internal Mic
Camera	CMOS Image Sensor
Dimension	W60 x L150 x D25mm
Event	G-Sensor (3-Axis), Emergency Button
GPS	Internal GPS Module
Memory	SD Memory, Supplied with 4GB SD Card, Maximum Memory 16GB
Power	DC 12 ~ DC24V
Video Channel	2 Ch
Video Resolution	640 x 480 @24FPS
